How To Call Out Chamfer In Solidworks Drawing - Web a chamfer callout on this platform is straightforward with the steps as follows: In the picture of a triangle below, the legs are the a and b sides of the triangle. Solidwork has a dimension style that is c1 for 45 degree chamfers. Click chamfer dimension on the dimensions/relations toolbar or click tools, dimensions, chamfer. Web to insert chamfer dimensions into a drawing: For rounding purpose, you can use solidworks fillet tool, which is explained in previous post. Web to insert chamfer dimensions into a drawing: Then select the edges, features, or faces to chamfer. Thanks in advance solidworks 2005 sp01.1 intel xeon 2.8ghz 2gb ram nvidia quadro fx700 128mb ewh (aerospace) 3 may 05 10:00 either way is allowable. Web solid works chamfer feature too used to convert sharp edge to straight plane surface for set angle or distance.

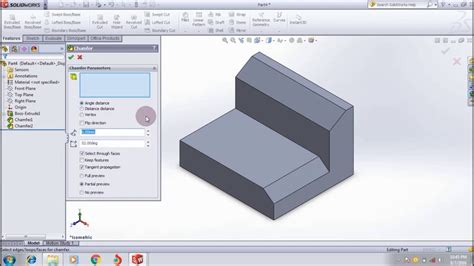

Tutorial SolidWorks 03 Chamfer YouTube

Click chamfer dimension on the dimensions/relations toolbar or click tools > dimensions > chamfer. I have been using this style for many years with multiple companies and drafting programs and have never questioned it. Then select the edges, features, or faces to chamfer. To do this, we will create the model shown in the following drawing: Some fields that accept.

How to do a chamfer in SolidWorks? Mechanitec Design

The preceding drawing specifies two different types of chamfer, each with different specifications. Web what is the standard for a callout of a chamfer feature? Web to insert chamfer dimensions into a drawing: The value of the dimension of a chamfer is dependent on the edges that were selected, and the order in which they are selected. Then select the.

How to Use SolidWorks Sketch Chamfer Tool Tutorial for Beginners

X display is the size of the x in a chamfer dimension with two numbers, such as 1 x 45° (length x angle), 45° x 1 (angle x length), 1 x 1 (length. Web | print | feedback on this topic sketching sketch chamfers to create a sketch chamfer: Web to insert chamfer dimensions into a drawing: Under chamfer parameters,.

012 SolidWorks 2014 Tutorial Sketch Chamfer YouTube

Web what is the correct way to call out a 45 degree chamfer? Web the sketch chamfer tool applies a chamfer to adjacent sketch entities in 2d and 3d sketches. In the graphics area, select the two sketch entities to chamfer. Web what is the standard for a callout of a chamfer feature? Select the appropriate items to chamfer.

Chamfer Dimensioning GD&T Basics

After drawing the part, from the menu bar select design > solid > modify > chamfer. In the graphics area, select the two sketch entities to chamfer. Web to insert chamfer dimensions into a drawing: You must select the chamfered edge first. Web the most common way to spec a chamfer is by giving its leg length size and the.

CHAMFER COMMAND IN 3D DRAWINGS Solid Works Tutorial YouTube

Web to insert chamfer dimensions into a drawing: See figure 2 for chamfer dimensioning examples. Web what is the standard for a callout of a chamfer feature? From that select “sketch chamfer” option. In the propertymanager, set the chamfer parameters as necessary.

Learn SolidWorks Chamfer Feature Tutorial _ SolidWorks Video Tutorials

Then select the edges, features, or faces to chamfer. Web chamfers can be dimensioned in two ways, either by calling out the length by angle, or calling out the length by length. In the propertymanager, set the chamfer parameters as necessary. Go to the annotate tab, select the show model annotations icon, make sure dimension is selected in the pop.

Chamfer SolidWorks Tutorial for Beginners

The preceding drawing specifies two different types of chamfer, each with different specifications. In this section, we will discuss how to apply the chamfer feature. In an open sketch, click sketch chamfer on the sketch toolbar, or click tools > sketch tools > chamfer. I have been using this style for many years with multiple companies and drafting programs and.

SolidWorks Tutorial How to Add Chamfer Dimension In Solidworks Drawing

You must select the chamfered edge first. Then select the edges, features, or faces to chamfer. In the graphics area, select the two sketch entities to chamfer. Y14.5 clearly says a note 1 x 1 or 1 x 45° is allowed. I have been using this style for many years with multiple companies and drafting programs and have never questioned.

How to Use SolidWorks Chamfer Tool Features in SolidWorks CAD

In addition to the usual dimension display properties, chamfer dimensions have their own options for leader display, text display, and x display. Web from solidworks menubar, click on the “tools” menu and drop down menu will appear, from that select the “sketch tools” and a side menu will appear. After drawing the part, from the menu bar select design >.

Web Solid Works Chamfer Feature Too Used To Convert Sharp Edge To Straight Plane Surface For Set Angle Or Distance.

Click chamfer dimension on the dimensions/relations toolbar or click tools > dimensions > chamfer. Web the most common way to spec a chamfer is by giving its leg length size and the chamfer angle. In the propertymanager, set the chamfer parameters as necessary. Web chamfers can be dimensioned in two ways, either by calling out the length by angle, or calling out the length by length.

Web 0:00 / 4:51 Solidworks Tutorial | Sketch Chamfer | Cadd Engineer 1.82K Subscribers Subscribe 2.7K Views 1 Year Ago India #Chamfer Tool Sketch Chamfer The Sketch Chamfer Tool Applies A.

Select the appropriate items to chamfer. Y14.5 clearly says a note 1 x 1 or 1 x 45° is allowed. After drawing the part, from the menu bar select design > solid > modify > chamfer. In addition to the usual dimension display properties, chamfer dimensions have their own options for leader display, text display, and x display.

Web From Solidworks Menubar, Click On The “Tools” Menu And Drop Down Menu Will Appear, From That Select The “Sketch Tools” And A Side Menu Will Appear.

From that select “sketch chamfer” option. X display is the size of the x in a chamfer dimension with two numbers, such as 1 x 45° (length x angle), 45° x 1 (angle x length), 1 x 1 (length. Click chamfer dimension on the dimensions/relations toolbar or click tools > dimensions > chamfer. Web to insert chamfer dimensions into a drawing:

Web Dimensioning In A Drawing.

Is it to call out the note with a leader (.25 x 45°) or to add two seperate dimensions (one linear and one angle)? If no angle is given, the chamfer angle would be assumed to be 45 degrees. Then select the edges, features, or faces to chamfer. To do this, we will create the model shown in the following drawing:
